Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer

Name: Vertical Electronic Current Transformer Ferrite Core Type High Current Transformer
Brand: Greenfair
Price: 1 USD

Quality Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer for sale

Brand Name : Greenfair

Model Number : PQ series

Certification : CE, UL, ISO9001

Place of Origin : China

MOQ : 1000pcs

Packaging Details : carton box

type : PQ20 transformer

frequency : 1KHz-1MHz

core : PQ2020 TP4/3C90

bobbin : PHENOLIC UL94V-0 150℃

phase : single

tube : TFL 150V 200℃

appliance : led driver

power : 10~500W

Contact Now

Vertical and Horizontal PQ16 PQ20 PQ23 ferrite core type big power big current transformer for led driver

Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 1KHz-1MHz
4. High isolation strength
5. High-temperature resistant
6. Operating temperature -40°C to +125°C
7. Power range 10w-500w

PQ Transformer
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: PQ16/12, PQ20/7, PQ20/10, PQ20/16, PQ20/20, PQ23/17, PQ26/15, PQ26/20, PQ26/25, PQ27/25, PQ32/11, PQ32/20, PQ32/25, PQ32/30, PQ33/12, PQ35/9, PQ35/25, PQ38/11, PQ38/12, PQ40/20, PQ40/40, PQ50/50.
Usage: High Frequency
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
color: yellow
size: horizontal
type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR, etc
Core grade: PC40, 3C90,TP4
Bobbin material: Phenolic

Application:
Power supply Driver
Lighting appliance
Communication equipment
LCD Power Supply

Converter and inverter

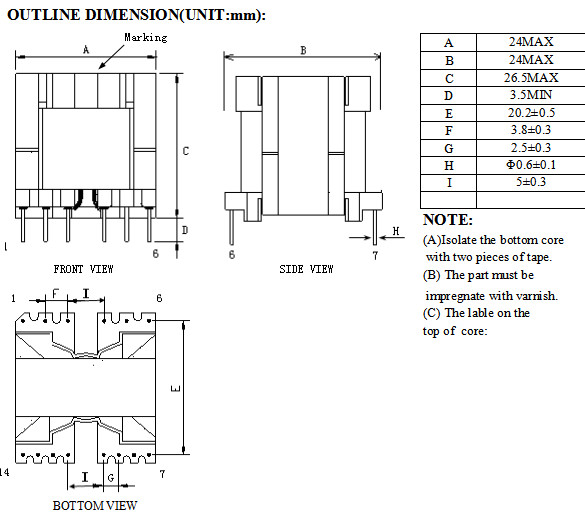

Vertical Electronic Current Transformer , Ferrite Core Type High Current Transformer

WINDING PARAMETER:
WINDING ORDER	MATERIAL SPEC.	MARGINAL TAPE		TUBE TYPE		S--F	TURNS	WINDING FASHION	ISOLATION BETWEEN WINDING
		BOTTOM	TOP	S	F
N1	1UEWFΦ0.6*2P	2mm	2mm	TFL	TFL	3---4	5	SPACED	1mil12mm3TS
N2	1UEWFΦ0.1*1P	2mm	2mm	TFL	TFL	7---14	250	SPACED	1mil12mm3TS

WINDING PARAMETER:
WINDING ORDER	MATERIAL SPEC.	MARGINAL TAPE		TUBE TYPE		S--F	TURNS	WINDING FASHION	ISOLATION BETWEEN WINDING
		BOTTOM	TOP	S	F
N1	1UEWFΦ0.6*2P	2mm	2mm	TFL	TFL	3---4	5	SPACED	1mil12mm3TS
N2	1UEWFΦ0.1*1P	2mm	2mm	TFL	TFL	7---14	250	SPACED	1mil12mm3TS

MATERIAL LIST:
NO.	MATERIAL NAME	MATERIAL SPEC.	PROVIDER	UL·NO
1	CORE	PQ2020 TP4/3C90	TDG/FERROXCUBE OR EQUIVALENT
2	BOBBIN	PHENOLIC	CHANG CHUN OR EQUIVALENT	E59481
3	WIRE	MW-79C	DATONG OR EQUIVALENT	E237377
4	TUBE	TFL 150V 200℃	WOER OR EQUIVALENT	E203950
5	ISOLATION TAPE	CT-280 130℃	YA HUA OR EQUIVALENT	E165111
6	VARNISH	8562/A	HANG CHENG OR EQUIVALENT	E200154

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range		Humidity range		Standard test conditions
Operating temperature*	Storage temperature	Operating temperature**	Storage temperature**	Operating temperature**	Storage temperature**
( ℃)	( ℃)	( % RH)	( % RH)	( ℃)	( % RH)
-30 to +120	-40 to +80	10 to +95	10 to +95	25 ± 10	25 to +75

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
